The linear CCD principle and application-Laser displacement system
Experiment contents and related subjects:
● The working principle, driving principle and characteristics of integration time of linear
array CCD.
●Optical signal conditioning
●Two-value and differential of signal.
●Applications of linear array CCD in the dimensional measurement field.
● Working principle of laser displacement meter.
Features of the instruments:
● Driver timing circuit is adjustable, impact on the acquisition signal caused by drive signal and integration time can be observed.
● One-by-one count can be carried out on the pixel, experience the measuring principle.
Complete set of equipment:

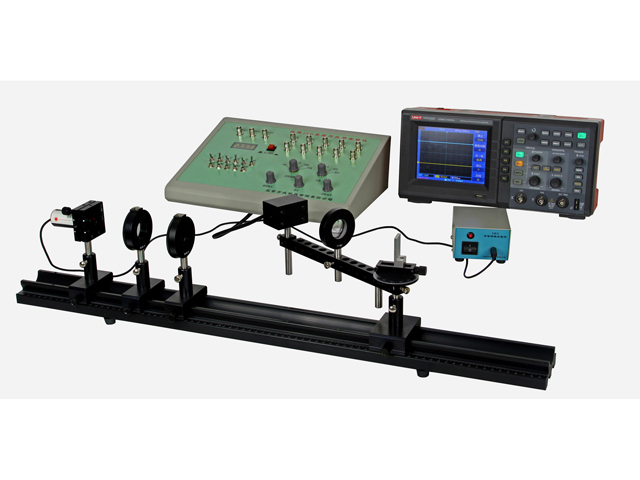

● Experiment host, CCD sensor, optical experiment guid, laser diode, lens, polarizer, oscilloscope (self-contained) and etc..
