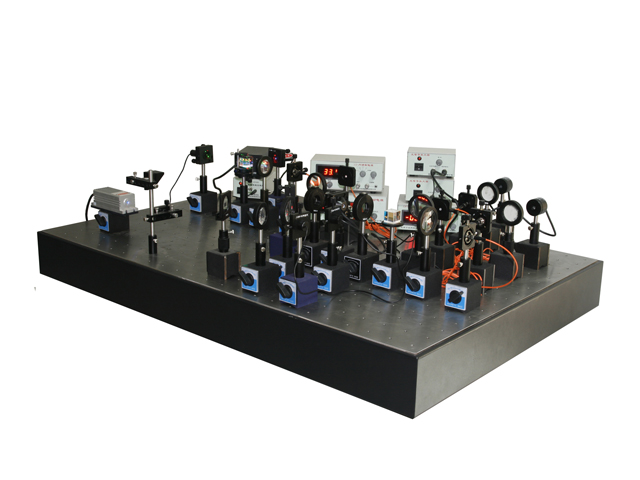

This system simulates the working principle of plug-division multiplexing of optical fiber communication. A more comprehensive display of the optical signal of the optical fiber communication up and down the road. Switching technology to achieve the optical signal of the road, under the road.

Products

Experimental purposes, and related subjects:

All-optical networks.

Wavelength Division Multiplexing.

Crosstalk, node.

Add-drop multiplexing, the signals on the road, the next road.

Electro-optical properties of semiconductor lasers.

Crystal electro-optic effect

Signal of the internal and external modulation.

Audio signal and video signal transmission.

Photodiode, avalanche photodiode works.

Optical experimental platform (including tables) 1500 * 1000 * 80mm3.

Semiconductor laser (with power) 532nm, 2mW.

Semiconductor laser (with power) 650nm, 25mW.

Three-dimensional rotation platform range ф50mm.

Polarizer (including frame) 360-degree adjustable minimum scale of 1 degree, diameter 27mm.

Fiber coupler two-dimensional adjustable.

Lens (with box) f = 100
