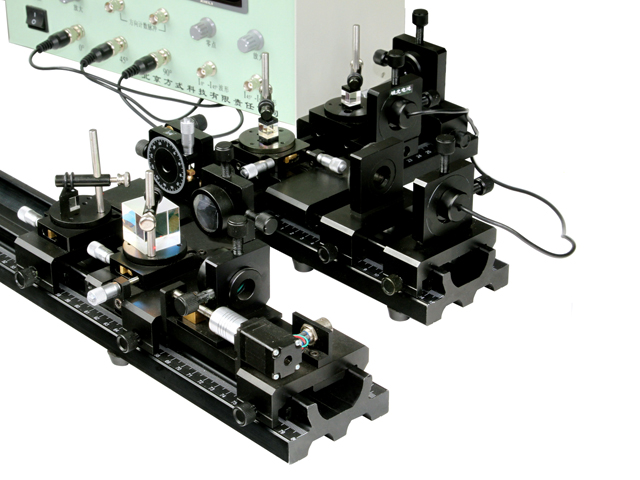

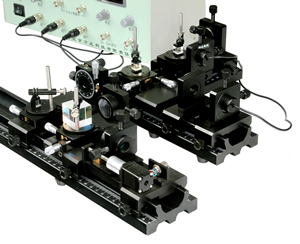

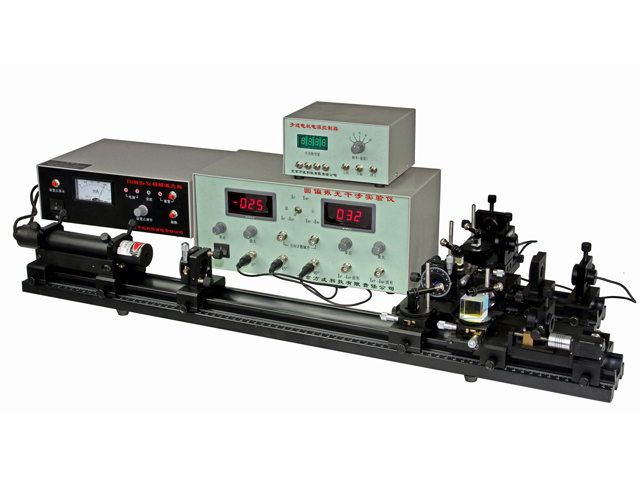

In this study, a new interference: circularly polarized light interference. By superposition of two beams of circularly polarized light with the interference results different from the traditional interference fringes or ring pattern. Circularly polarized light interfere with the results reflected in the polarization state of light, the phase relationship of the two beams of light by measuring the polarization state in order to achieve precision displacement measurement. At the same time, the trend of the polarization state changes also reflect the direction of the phase change, the measured object's direction of movement through a particular circuit can be determined, excluding the influence of vibration. Circularly polarized light interfere with the resolution of the system theoretically can reach the nanometer scale.



Experiments related subjects:

 He-Ne laser frequency stabilization

 linearly polarized light, circularly polarized light, the crystal birefringence 1/4λ wave plate 1/2λ wave plate

 polarized light decomposition and synthesis

 Michelson interferometer, piezoelectric effect, polarizing beam splitter retroreflector

 circularly polarized light interference, the interference signal pickup and processing

 small displacement of precision measurement



Expansion:

 supporting software, real-time efficient data processing on the measurement results

 stepper motor driven electric displacement can simulate the displacement measurement

 Stokes polarization state measuring instrument can be real-time image display metering polarization state

 secondary development of special attachments can be linear, flat, angle, perpendicularity determination of the geometric quantities

Technical indicators

Optical experiments rail 1000mm.

Optical experiments rail 300mm.

Optical experiments rail 150mm.

Consumers' polarizing prism 10 * 10mm, 633nm,

Polarizing prism 10 * 10mm, 633nm.

Polarizing prism 25 * 25mm, 633nm.
